PP sheet for wastewater treatment equipment is assessed against the actual project duty. Wastewater treatment equipment selection should start with the actual equipment duty and drawing. Wastewater is not a single material condition. Record the treatment chemicals, pH adjustment, cleaning fluids, normal and maximum temperature, liquid height, solids, supports, and inspection requirements. The internal materials identify water-treatment equipment as an application area for discussion, while selection remains specific to the duty. The material request needs the chemical, temperature, geometry, support, joint, and inspection information that applies to the finished assembly. QEEHUA internal data can support a first material discussion, but it should not be expanded into a grade-wide promise, an equipment design calculation, or an approval for unlisted conditions. Send the project information with the sample request so the proposed sheet, rod, or profile can be reviewed against the real use before material is released.
PP sheet wastewater treatment equipment should be reviewed against the documented project duty, drawings, fabrication scope, material records, and acceptance requirements.
Project duty
PP sheet wastewater treatment equipment: project review
Use the documented project requirements to compare the relevant material, fabrication, and quality-control inputs before release.
Wastewater is not a single material condition. Record the treatment chemicals, pH adjustment, cleaning fluids, normal and maximum temperature, liquid height, solids, supports, and inspection requirements. The internal materials identify water-treatment equipment as an application area for discussion, while selection remains specific to the duty.
Use the QEEHUA industry applications page as context for the equipment category. The final decision needs the stated project information and should not rely on a generic application label.

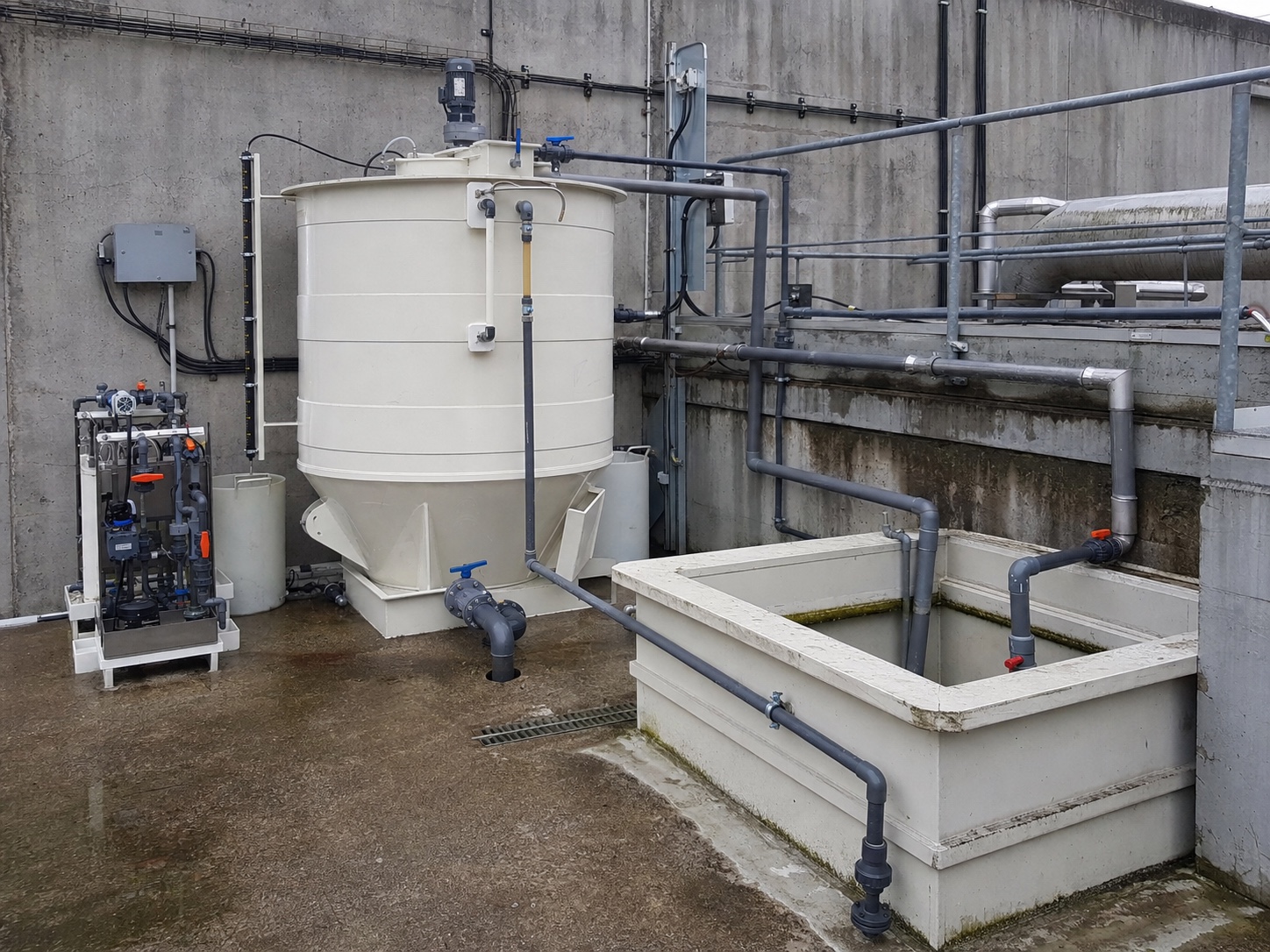

Wastewater treatment equipment often has more than one liquid condition. Separate the equalization, dosing, neutralization, clarification, sludge, rinse, and cleaning areas on the duty sheet. State the chemical added at each stage, the expected pH range where supplied by the project owner, the operating temperature, and whether solids collect or circulate in that zone.
The equipment drawing should show tanks, troughs, covers, baffles, pump connections, drain points, access openings, and structural supports. A material discussion becomes useful only when the proposed sheet can be matched to a named component and its actual duty. Do not treat “wastewater” as a complete chemical description.
Material role
The QEEHUA PP sheet range is the base product reference. The selection question is whether the proposed material, construction detail, and service conditions work together. A panel, a welded joint, a profile, and a support interface can have different demands in the same equipment.
Separate the initial material screen from the equipment approval. This keeps a useful data-sheet discussion from being mistaken for a design calculation or a production commitment.
Conditions to confirm
Service conditions
State every relevant medium, concentration, normal and maximum temperature, exposure duration, cleaning condition, and upset condition. If the project includes no chemical contact, state the installation environment and operating temperature instead. Do not infer performance from a similar chemical or a broad process name. The same condition-based approach is reflected in ASTM D543.
Geometry and support
Record panel spans, liquid height or process load, positive or negative pressure where relevant, supports, penetrations, reinforcement, welding access, and inspection points. These details determine what the fabricator and project engineer need to review.
Ask for the dosing chemistry and cleaning chemistry, not only the main water stream. A neutralisation chemical or a periodic cleaning liquid can change the selection question for a local area. If concentration, temperature, or exposure time is not available, record that gap rather than assigning a performance claim from a similar installation.
Solids, liquid height, baffles, penetrations, and support spacing all affect the equipment review. This does not mean that the article makes an abrasion or structural claim for PP sheet. It means the project team must identify where solids move, where liquid stands, and where the fabricated part is supported before the design is closed.
Relevant data
The following table keeps the reported data or required project inputs with the condition that gives them meaning. It is not a substitute for the equipment design basis.
| Project data | Reported value or input | Material or condition | Method or check |
|---|---|---|---|
| Density | 912 kg/m³ | Tested PP sheet sample | ASTM D792-20 |
| Tensile strength | 30 MPa | Tested PP sheet sample | ASTM D638-22 |
| Flexural test result | 1,870 MPa | Tested PP sheet sample | ASTM D790-25 |
| Deflection temperature under load | 137.0 °C | Tested PP sheet sample | ASTM D648-18 |
Scope of the data: The reported values are for a tested PP sheet sample. They are not design allowables or universal grade claims. Confirm the material, service conditions, geometry, support, and joints for the project.
A good wastewater-equipment inquiry separates material selection from process assumptions. Name the component, list the liquid conditions that apply there, and identify the drawing feature that needs review. This is especially useful when one package contains a tank, trough, cover, and piping detail with different exposure conditions. It keeps the purchasing record factual and gives the technical team a defined list of open items.
Fabrication checks
Define the cut edges, joint type, sequence, access, process equipment, and inspection requirement before issuing the production request. When a thermoplastic welded detail is involved, include the matching PP welding rod request. When a channel or reinforcement feature is involved, include the PP U-shaped slot section drawing and mating dimensions.
Joint quality and finished-equipment performance depend on the assembly process. The safest specification is the one that makes the drawing, service duty, material, and inspection condition visible to the same review.
For treatment equipment, keep the fabrication record tied to the process zones. Mark the joints, baffle attachments, pipe penetrations, overflow details, cover interfaces, and inspection access on the same drawing revision. If a welded detail is critical to the buyer, include the agreed acceptance check in the inquiry rather than relying on a general material description.
Sample request
Send the drawing, equipment use, chemical and temperature information where relevant, requested dimensions, fabrication route, sample purpose, and any test or approval requirement. Request a project sample or submit the equipment information. An open point should be marked as open, not replaced with an assumed typical condition.
For a related selection example, see the QEEHUA PP sheet guide for chemical tanks. It explains why the product data and the project duty must be read together.
Choose the sample form for the decision that remains open. A flat coupon can support a surface or machining review. A formed or welded detail is more relevant when the project needs to examine a baffle joint, a pipe penetration, or an overflow feature. State the component name and drawing revision in the request.
Frequently asked questions
What information is needed for a wastewater treatment equipment review?
Provide the equipment drawing, service conditions, dimensions, fabrication route, quantity, and any inspection or approval requirement.
Can a single data-sheet value approve the full assembly?
No. Material test results are inputs to a project review. The final assembly also depends on geometry, loads, supports, joints, service conditions, and the design basis.
Why should the drawing be sent with the material request?
The drawing shows spans, penetrations, supports, joint access, and interfaces that cannot be determined from a material name or panel size alone.
What should be included with a sample request?
Send the project duty, drawing, requested material or detail, fabrication plan, sample purpose, and acceptance requirement so the sample can be discussed against the real use.
For PP sheet wastewater treatment equipment, record the final project assumptions and acceptance checks before releasing the fabrication or purchase scope.
