PP sheet outdoor use is assessed against the actual project duty. Outdoor pp equipment selection should start with the actual equipment duty and drawing. Outdoor selection needs direct-sun exposure, moisture, temperature range, contamination, cleaning, appearance requirement, support layout, and joint details. The data sheet records Delta E*ab-SCI 0.07 and Delta E*ab-SCE 0.08 after ASTM G154-23 Cycle 1 for tested samples. It does not establish an outdoor-life promise or apply to every grade. The material request needs the chemical, temperature, geometry, support, joint, and inspection information that applies to the finished assembly. QEEHUA internal data can support a first material discussion, but it should not be expanded into a grade-wide promise, an equipment design calculation, or an approval for unlisted conditions. Send the project information with the sample request so the proposed sheet, rod, or profile can be reviewed against the real use before material is released.
PP sheet outdoor equipment should be reviewed against the documented project duty, drawings, fabrication scope, material records, and acceptance requirements.
Project duty
PP sheet outdoor equipment: project review
Use the documented project requirements to compare the relevant material, fabrication, and quality-control inputs before release.
Outdoor selection needs direct-sun exposure, moisture, temperature range, contamination, cleaning, appearance requirement, support layout, and joint details. The data sheet records Delta E*ab-SCI 0.07 and Delta E*ab-SCE 0.08 after ASTM G154-23 Cycle 1 for tested samples. It does not establish an outdoor-life promise or apply to every grade.
Use the QEEHUA industry applications page as context for the equipment category. The final decision needs the stated project information and should not rely on a generic application label.
Outdoor service begins with the installation record. State the country or site climate, orientation, direct-sun exposure, wet and dry cycle, temperature range, airborne contamination, cleaning practice, and appearance requirement. A rooftop cover, an exterior enclosure, and a shaded equipment panel can have different exposure even when they use the same nominal sheet material.

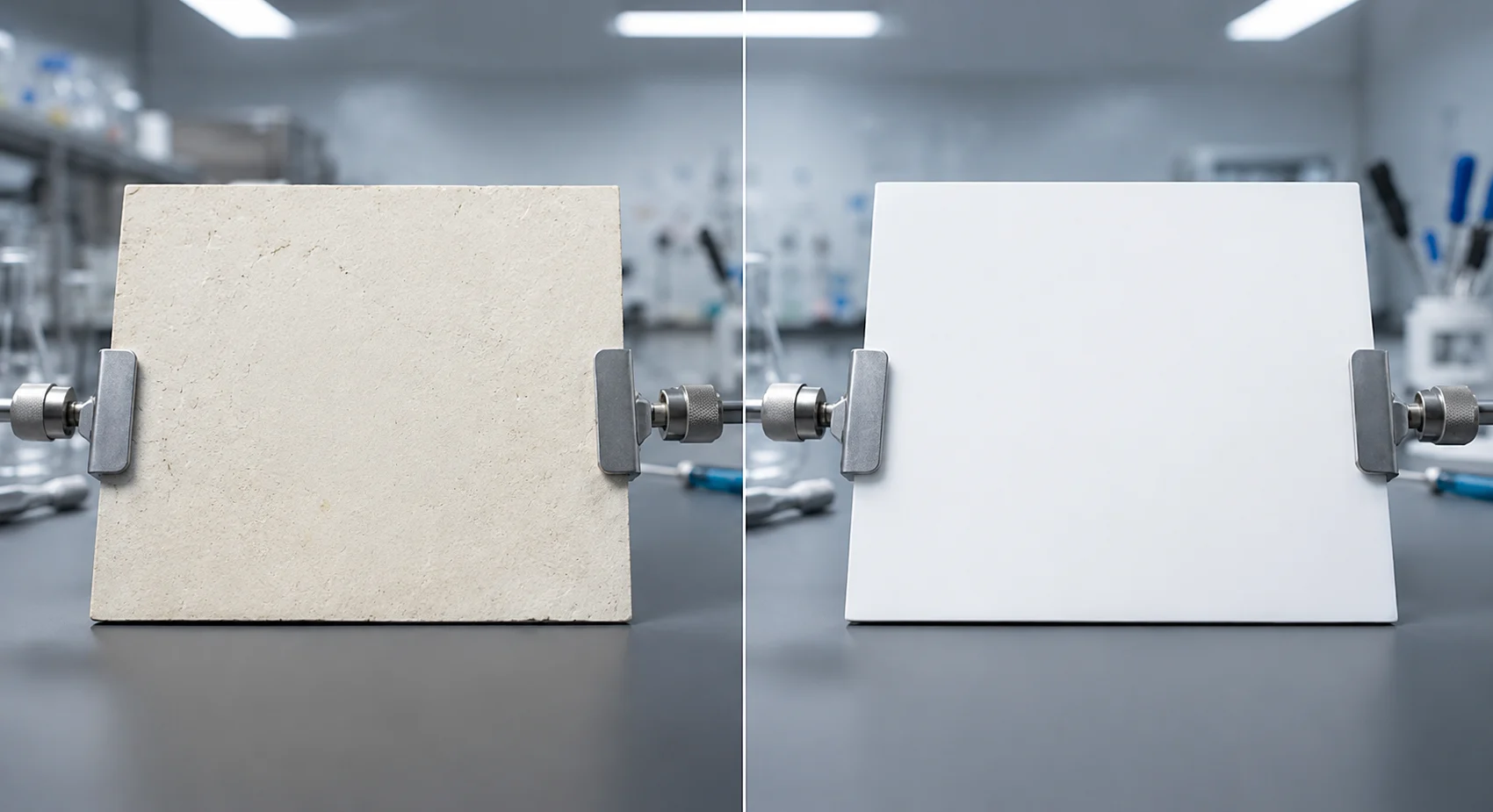

The QEEHUA data sheet records Delta E*ab-SCI 0.07 and Delta E*ab-SCE 0.08 after ASTM G154-23 Cycle 1 for tested samples. Those are reported exposure results. They do not establish years of service, a fixed colour-retention period, or a result for every PP grade and thickness.
Material role

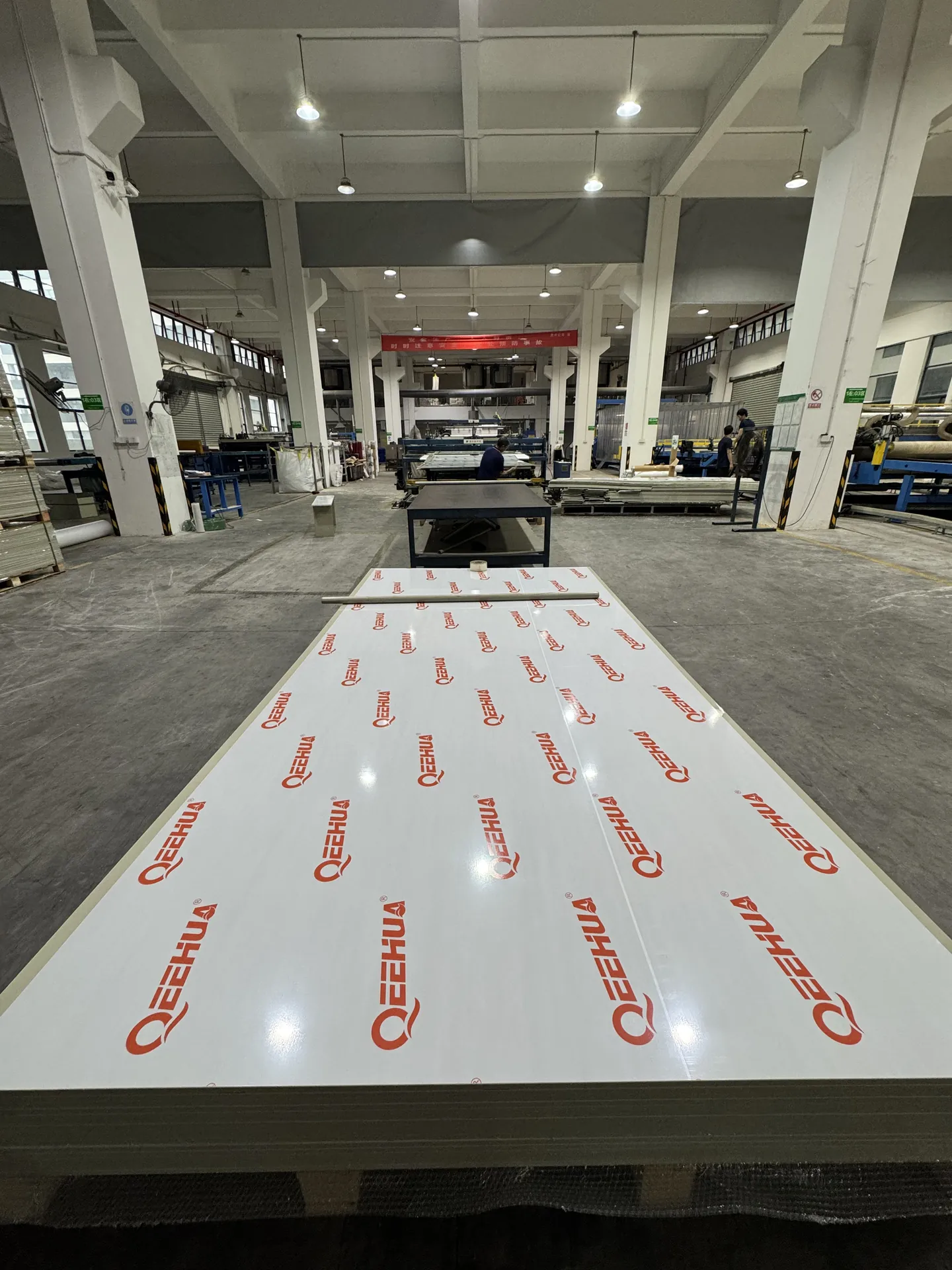

The QEEHUA PP sheet range is the base product reference. The selection question is whether the proposed material, construction detail, and service conditions work together. A panel, a welded joint, a profile, and a support interface can have different demands in the same equipment.
Separate the initial material screen from the equipment approval. This keeps a useful data-sheet discussion from being mistaken for a design calculation or a production commitment.
Conditions to confirm
Service conditions
State every relevant medium, concentration, normal and maximum temperature, exposure duration, cleaning condition, and upset condition. If the project includes no chemical contact, state the installation environment and operating temperature instead. Do not infer performance from a similar chemical or a broad process name. The same condition-based approach is reflected in ASTM G154.
Geometry and support
Record panel spans, liquid height or process load, positive or negative pressure where relevant, supports, penetrations, reinforcement, welding access, and inspection points. These details determine what the fabricator and project engineer need to review.
Ask the project owner what failure or change is unacceptable. The answer may involve colour, surface condition, a functional interface, access-panel fit, or a structural support detail. That requirement gives the technical review a defined target. Do not turn one accelerated-weathering result into a general outdoor guarantee.
Outdoor equipment still needs a mechanical review. Record panel span, support interval, fasteners or welded joints, thermal movement allowance where relevant, penetrations, and wind or vibration inputs supplied by the project. The published tensile and flexural results are tested-sample data. They are not design allowables for an exterior assembly.
Relevant data
The following table keeps the reported data or required project inputs with the condition that gives them meaning. It is not a substitute for the equipment design basis.
| Project data | Reported value or input | Material or condition | Method or check |
|---|---|---|---|
| Colour change, SCI | Delta E*ab 0.07 | Test sample after one exposure cycle | ASTM G154-23 Cycle 1 |
| Colour change, SCE | Delta E*ab 0.08 | Test sample after one exposure cycle | ASTM G154-23 Cycle 1 |
| Tensile strength | 30 MPa | Test PP sheet sample | ASTM D638-22 |
| Flexural test result | 1,870 MPa | Test PP sheet sample | ASTM D790-25 |
Scope of the data: The weathering result applies to tested samples and one reported cycle. It does not establish fixed outdoor life, colour retention, or grade-wide performance.
Put the outdoor requirement into a project acceptance record. Name the installed part, the site exposure, the appearance or function that must be preserved, and the method used to judge the sample. Include the planned cleaning method if it can contact the exposed surface. The reported G154 result can then be read in its stated test context. It should not be used as a shortcut for a service-life estimate or as a blanket claim for a different grade, thickness, or installation.
Fabrication checks
Define the cut edges, joint type, sequence, access, process equipment, and inspection requirement before issuing the production request. When a thermoplastic welded detail is involved, include the matching PP welding rod request. When a channel or reinforcement feature is involved, include the PP U-shaped slot section drawing and mating dimensions.
Joint quality and finished-equipment performance depend on the assembly process. The safest specification is the one that makes the drawing, service duty, material, and inspection condition visible to the same review.
The fabrication drawing should show cut edges, joints, support interfaces, drainage details, covers, and access points that remain exposed in service. Include the inspection point that matters to the project, such as surface appearance after a defined exposure or fit at a specific interface. Avoid an open-ended request for an “outdoor grade” without the site and acceptance condition.
Sample request
Send the drawing, equipment use, chemical and temperature information where relevant, requested dimensions, fabrication route, sample purpose, and any test or approval requirement. Request a project sample or submit the equipment information. An open point should be marked as open, not replaced with an assumed typical condition.
For a related selection example, see the QEEHUA PP sheet guide for chemical tanks. It explains why the product data and the project duty must be read together.
For an appearance-sensitive project, identify the sample colour, surface, size, exposure plan, and comparison method. For a fabricated outdoor part, request a detail that represents the joint or support interface under review. The sample discussion should state what it can demonstrate and what still requires project confirmation.
Frequently asked questions
What information is needed for a outdoor PP equipment review?
Provide the equipment drawing, service conditions, dimensions, fabrication route, quantity, and any inspection or approval requirement.
Can a single data-sheet value approve the full assembly?
No. Material test results are inputs to a project review. The final assembly also depends on geometry, loads, supports, joints, service conditions, and the design basis.
Why should the drawing be sent with the material request?
The drawing shows spans, penetrations, supports, joint access, and interfaces that cannot be determined from a material name or panel size alone.
What should be included with a sample request?
Send the project duty, drawing, requested material or detail, fabrication plan, sample purpose, and acceptance requirement so the sample can be discussed against the real use.
For PP sheet outdoor equipment, record the final project assumptions and acceptance checks before releasing the fabrication or purchase scope.
